Wireless Mic System 4-Channel UHF Receiver LCD Display Green

DETAILS

Features:

• UHF Band Receiver System
• Quad Frequency 4-Channel Design (Channel 1, 2, 3, 4) Addressable Frequency
• Broad Frequency Response Range & Low Distortion
• High Signal/Noise Ratio Performance
• RF Signal & AF Signal LED Indicators
• Radio Frequency and Audio Frequency
• 1 XLR Output Connector Jacks (as only one receiver)
• Independent Channel Adjustable Frequency Controls
• Rack-Mountable System

What's in the Box:

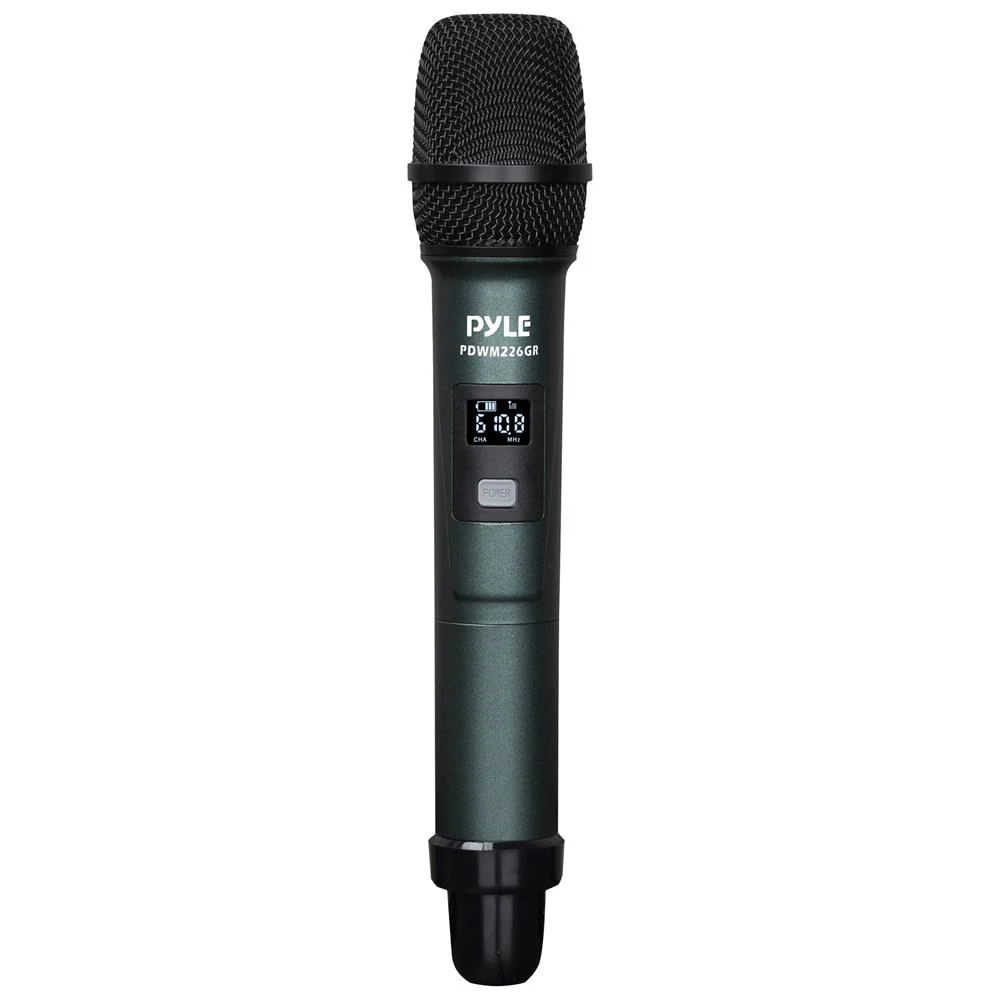

• (4) Wireless Microphone
• (8) 'AA' Battery
• (1) USB to Micro USB Charging Cable
• (4) Plastic Microphone Anti-Drop Rubber Ring
• (4) Microphone Sponge
• (1) Microphone Receiver
• (1) 3.5mm Jack Audio Input Connector
• (1) 18650mA Battery
• (1) Plastic Case

Transmitter Technical Specs:

• Number of Channels: 16
• Oscillation Mode: DSP Chip Frequency Lock
• Stability: ±10ppm
• RF Power: 10dBm
• Distortion Degree: <0.5%
• Battery Type: 1.5V, 'AA' Alkaline Battery
• Battery Life: 4-8 Hours

Receiver Technical Specs:

• Use LCD Screen Display
• Oscillation Mode: DSP Chip Frequency Lock
• Stability: ±10ppm
• Receiving Sensitivity: -95-72 dBm
• Distortion Degree: <0.5%
• Signal To Noise Ratio: >90dB
• Audio Output: 300mv (Maximum)

What's In The Box

What's in the Box:

(4) Wireless Microphone

(8) 'AA' Battery

(1) USB to Micro USB Charging Cable

(4) Plastic Microphone Anti-Drop Rubber Ring

(4) Microphone Sponge

(1) Microphone Receiver

(1) 3.5mm Jack Audio Input Connector

(1) 18650mA Battery

(1) Plastic Case
