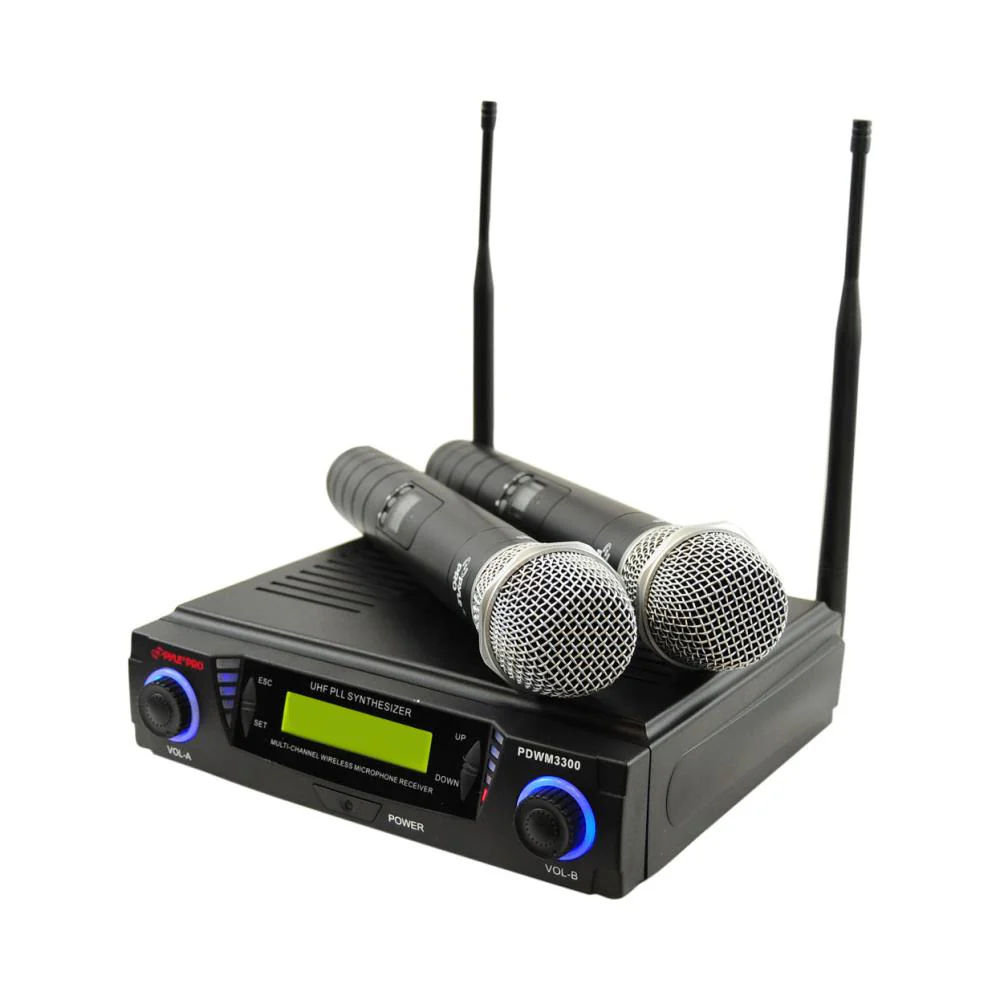

Wireless Microphone System

This wireless mic system was designed with the professional in mind. Comes with two (2) wireless UHF mics. On the base unit, two receiver antennas provide a maximum-quality and performance link for microphones within range. Dual volume controls provide independent control over each mic. Uses 1/4'' jack outputs (XLR Balanced Outputs & Mix Output). Two 1.5V AA batteries cables included. DC 12-17 Volt Input.

DETAILS

Receiver

• Rack mountable UHF system is perfect for large Events
• Foldable antennas
• Independent volume control for each microphone
• LCD display with relevant information
• Adjustable frequency FOr adding more Mic's
• Sensitivity: <2UV (12dB SINAD)
• Dynamic Range: >90dB
• Signal-to-Noise: >90 dB
• Image Rejection: >80dB
• System Distortion: <1%
• Audio Output Level: 800mV(600Œ©)
• Power supply: DC12V~17V/600MA
• Current Consumption: < 400mA
• Voltage: 110-240

Microphones

• On/off switch for simple operation
• Ergonomic design fits the hand perfectly
• Maximum Deviation Range: 60 KHz (Max)
• RF Output Power: <40mW
• RF Rejection: >40dB
• Current Consumption: <100mA
• Operate Range: 200 - 260 ft.
• Battery: 1.5V*2 AA
