Dual UHF Wireless Microphone System - 160ft Range, LED Display, 8 Channels

DETAILS

System Features:

• UHF Band Microphone System
• Operation Range: Up to 160'+ ft.
• LED Digital Display Readout Screens
• Simple Setup & Hassle-Free Operation
• AF & RF Audio Transmission Signal Strength Indicators
• Independent & Adjustable Channel Volume Controls
• Selectable Frequency Range: Up to (8) Channels
• 1/4" Audio Output Jack

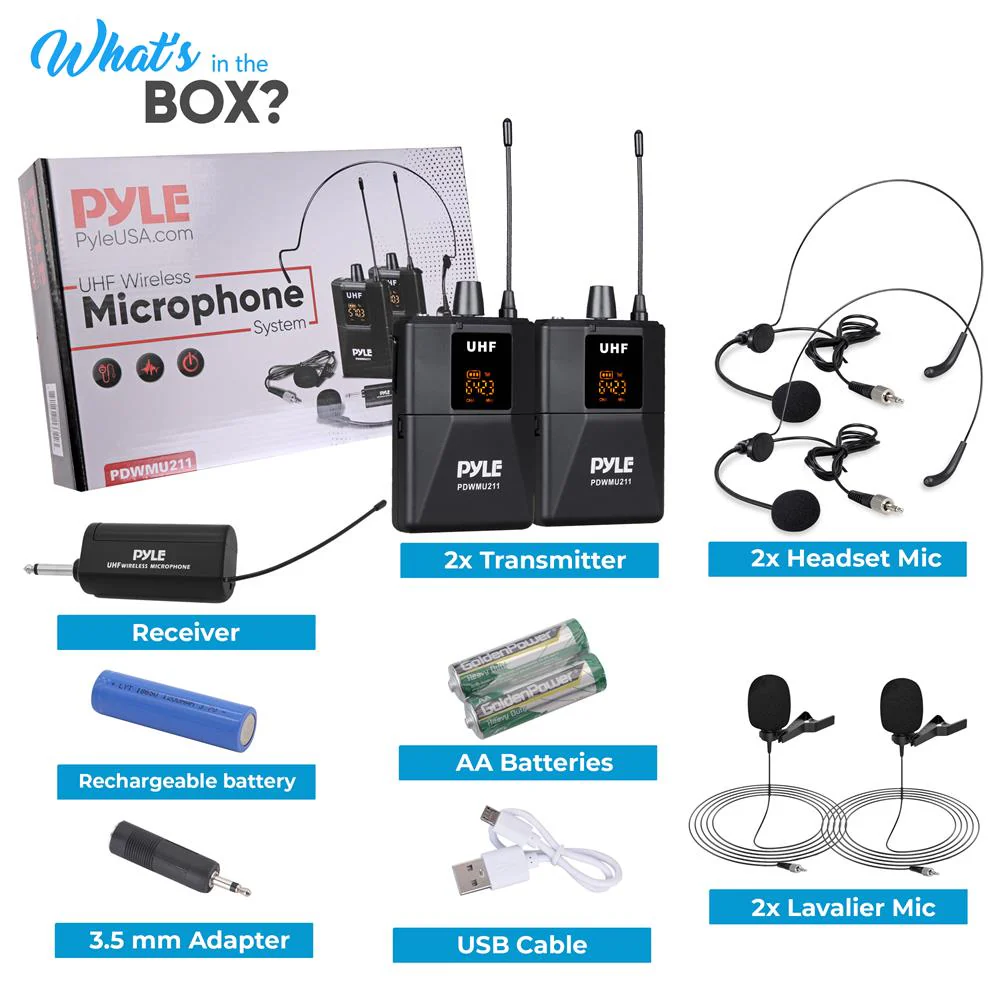

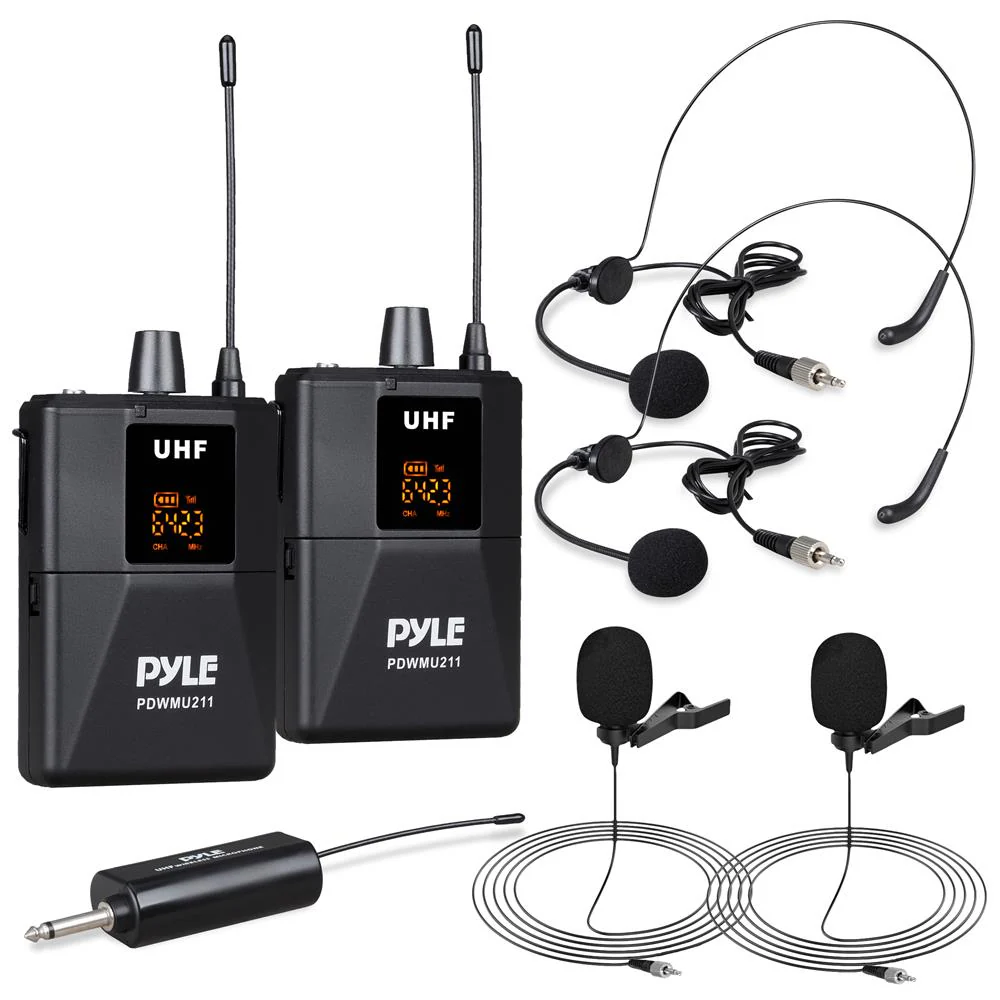

What’s in the Box:

• Receiver Base

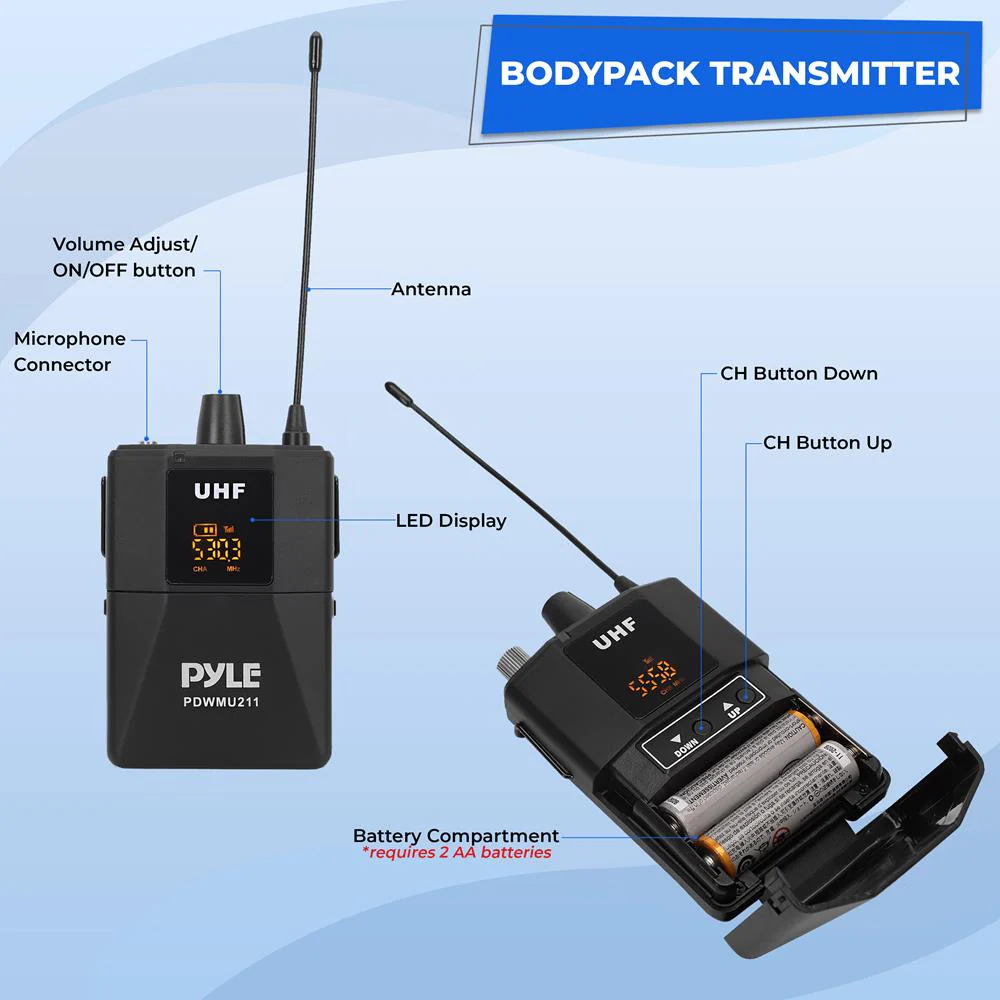

• (2) Beltpack Transmitter
• (2) Headset Microphone
• (2) Lavalier Microphone
• USB Power Cable Transmitter

Transmitter Specs:

• RF Output: >10 dBm
• Modulation Type: FM
• Max Deviation: ± 40 KHz
• Spurious Emission: > 55 dBc
• Nominal Current Drain: < 40mA

Receiver Specs:

• Signal / Noise Ratio: -105dB
• Border Upon Channel Rejection: >70dB
• T.H.D.: < 1%
• Audio Output Level: 0-300 mV
• Dimensions 6.8 x 5.3 x 1.7 in
• Power Supply: 110/220V (12-15V Power Adapter)

What's In The Box

What’s in the Box:

Receiver Base

(2) Beltpack Transmitter

(2) Headset Microphone

(2) Lavalier Microphone

USB Power Cable Transmitter

MANUALS & DOWNLOADS

PDWMU211 - Manuals
