12'' Low Profile Car Subwoofer 1200 Watt

This Pyle Chopper subwoofer is great when you need beastly bass in a slim package. With a slim-style mounting depth of 3.14'' -inches, these speakers will fit in the tightest spots. The 12'' -inch, 1200-watt dual voice coil subwoofer is equipped with a high quality poly mica cone and butyl foam surround for a clean, distortion-free low-end. The dual 2.5'' high temperature voice coils add extra punch, delivering a frequency response of 28 Hz to 2.2 kHz. The independently fused 20 amp speaker terminals provide a secure connection to wire up your system. Includes installation template.

DETAILS

12'' High Quality Poly Mica Cone

Butyl Foam Surround

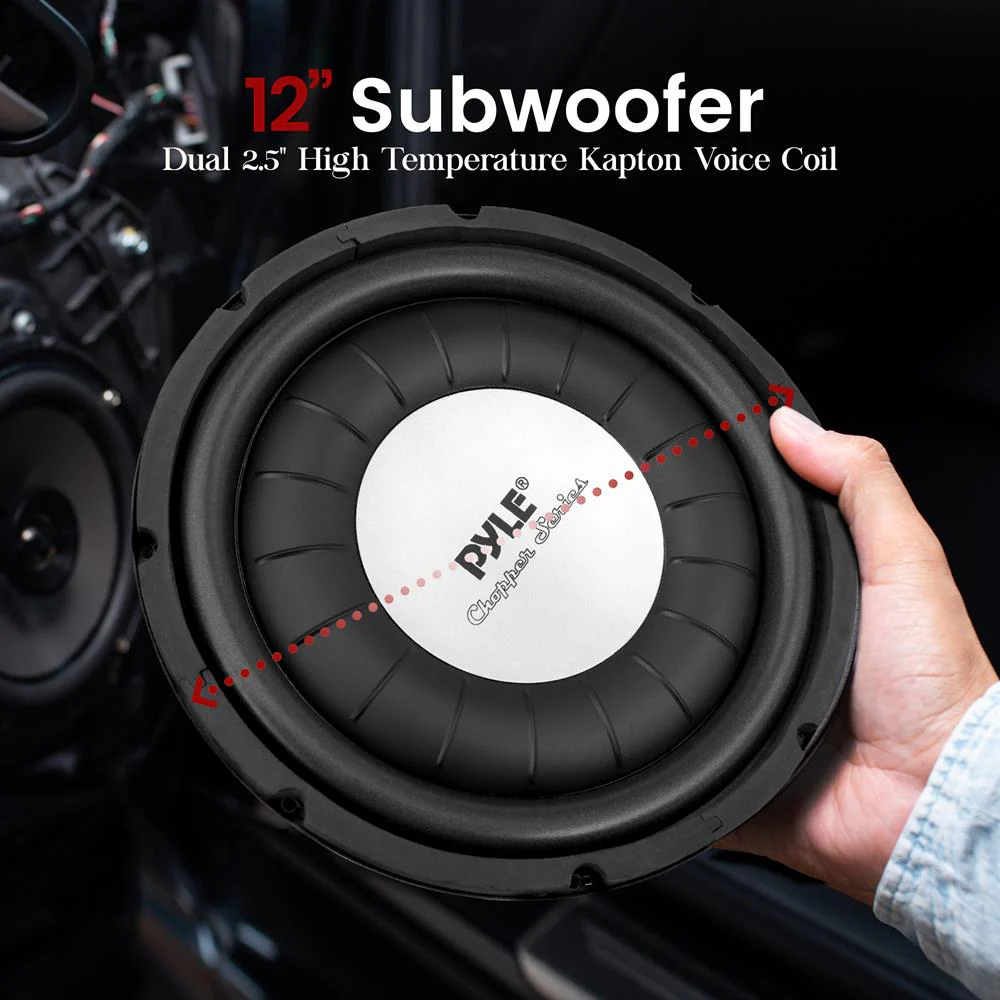

Dual 2.5'' High Temperature Kapton Voice Coils

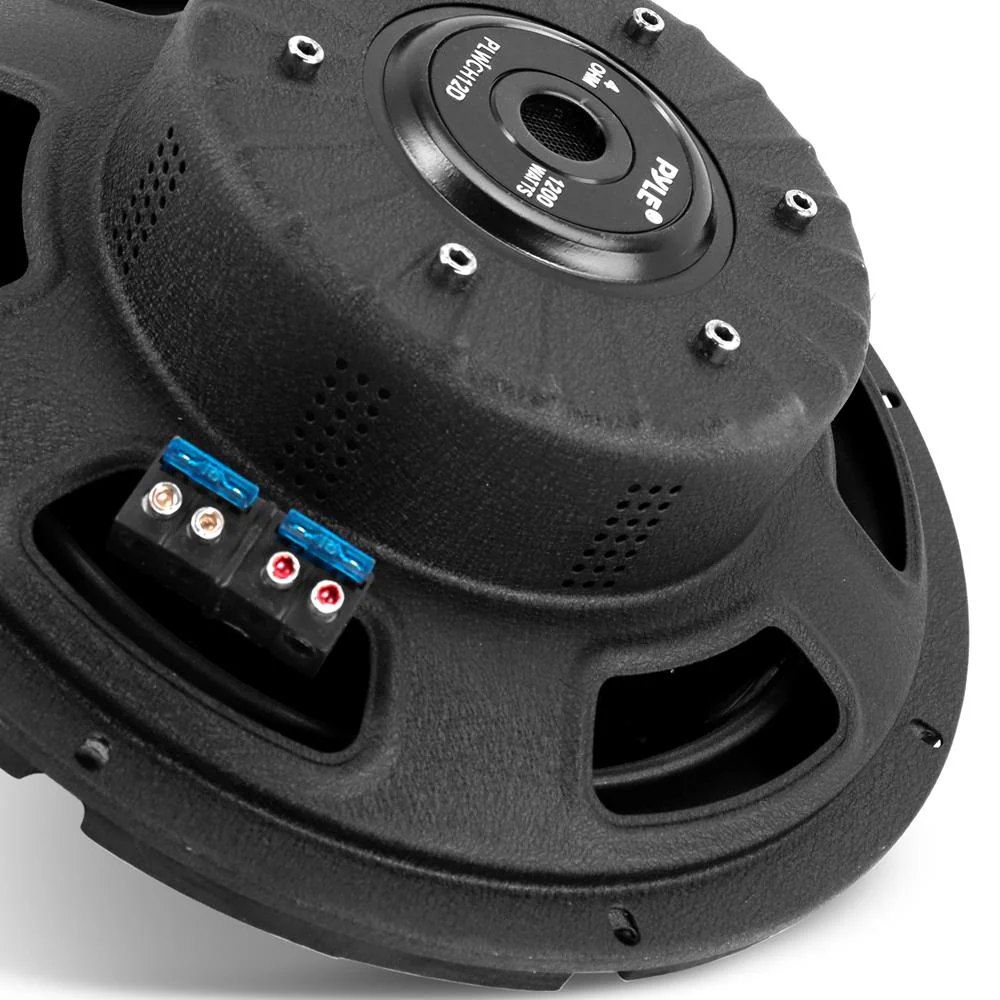

Independently Fused 20 Amp Speaker Terminals

75 Oz Magnet Structure

Power Handling: 600Watts RMS/1200 Watts Peak

Frequency Response:28 Hz - 2.2K Hz

Impedance (Per coil) : 4 Ohm

Fs:29.1, Qms:4.08, Qes:0.44, Qts:0.396, Vas (L)102.18

Efficiency: 92 dB

Includes Cut-Out Template

Sizes / Dimensions:

• Total Speaker Diameter: 12.24’’ -inches (311mm)
• Cut-Out Diameter: 11.02’’ -inches (280mm)
• Total Speaker Height: 4.01’’ -inches (102mm)
• Cut-Out / Mounting Depth: 3.14’’ -inches (80mm)

What's In The Box

12'' -inch Slim Subwoofer

MANUALS & DOWNLOADS

PLWCH12D - Manuals
