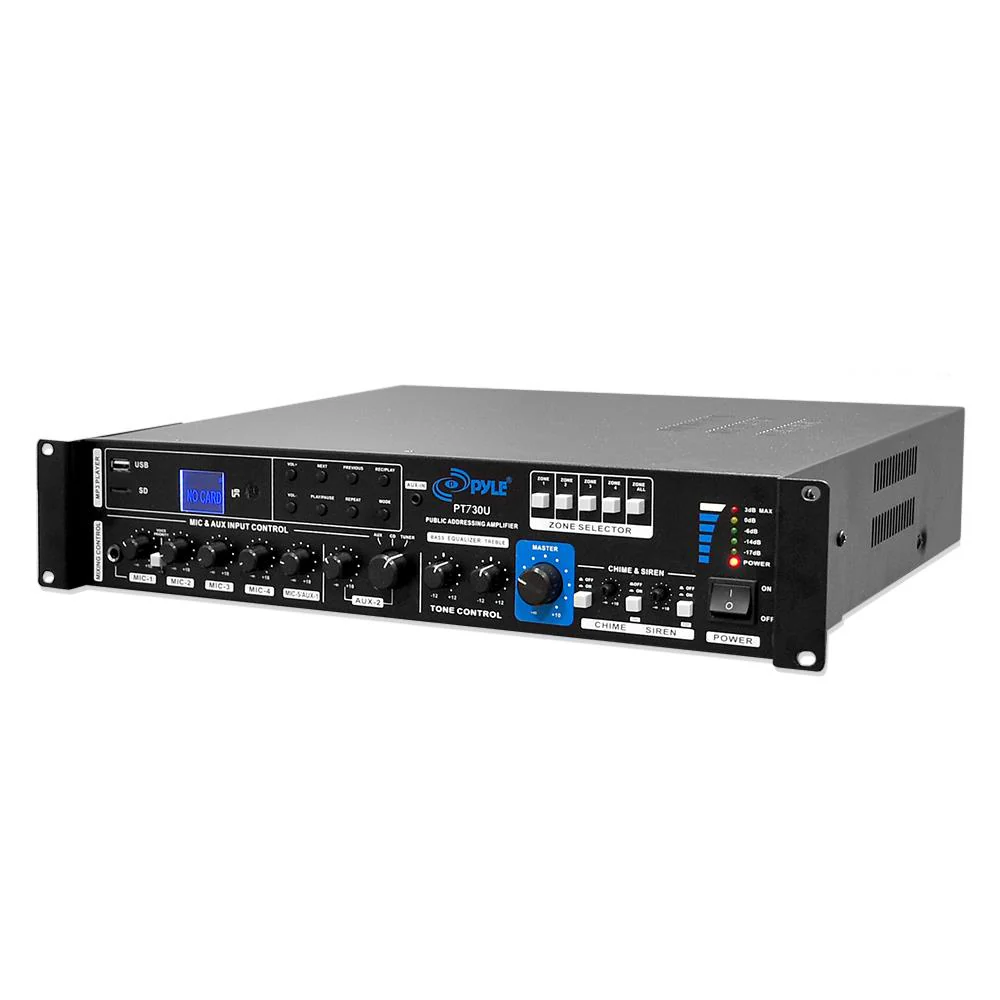

Pa Public Address Pro Audio Amplifier

The Pyle PT730U public address system is perfect for office paging systems, business background music, public gatherings, live DJ parties and any where you need music and microphone control. The microphone talkover function allows you speak over playing music. Amplifier has USB flash drive and micro SD memory card readers to quickly and easily play MP3 files. Additional features include (5) microphone inputs, switchable 3-channel stereo AUX-in, automatic talk-over function, and fully customizable listening experience with the front panel located control center for bass, mid, treble & tone adjustments.

DETAILS

System Features:

• Microphone Paging Audio Control Amplifier
• Announcement & Alert Functions: Chime and Siren Mode Controls
• Microphone Talkover Switch: Automatically Quiets Music & Plays Your Vocals when Speaking via Connected Microphone
• Connect & Stream Audio from External Devices
• USB Flash + Micro SD Memory Card Readers
• MP3 Digital Audio File Playback
• Digital LCD Display with ID3 Tag Song Readout Info
• Integrated Audio Recording Function

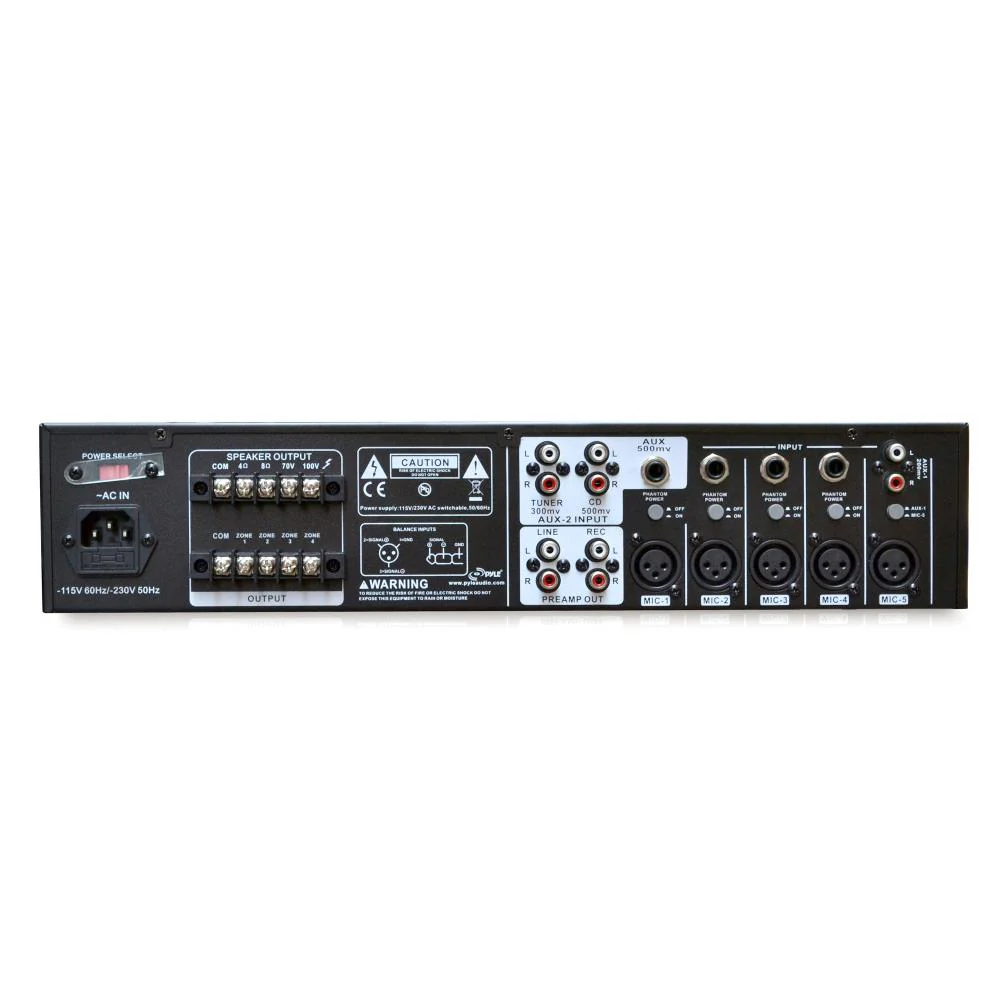

• Aux Audio (L/R) RCA Input / Output Jacks
• Easy-Access Speaker Terminals
• Speaker Output: 4 Ohm, 8 Ohm, 70 Volt, 100 Volt, COM
• +48V Phantom Power Control, Independent Mic Channel
• Aux (3.5mm) Jack
• 1/4’’ (6.35mm) Microphone Connectors
• XLR (3-Pin) Microphone Connectors
• LED Light Audio Output Indication Gauge

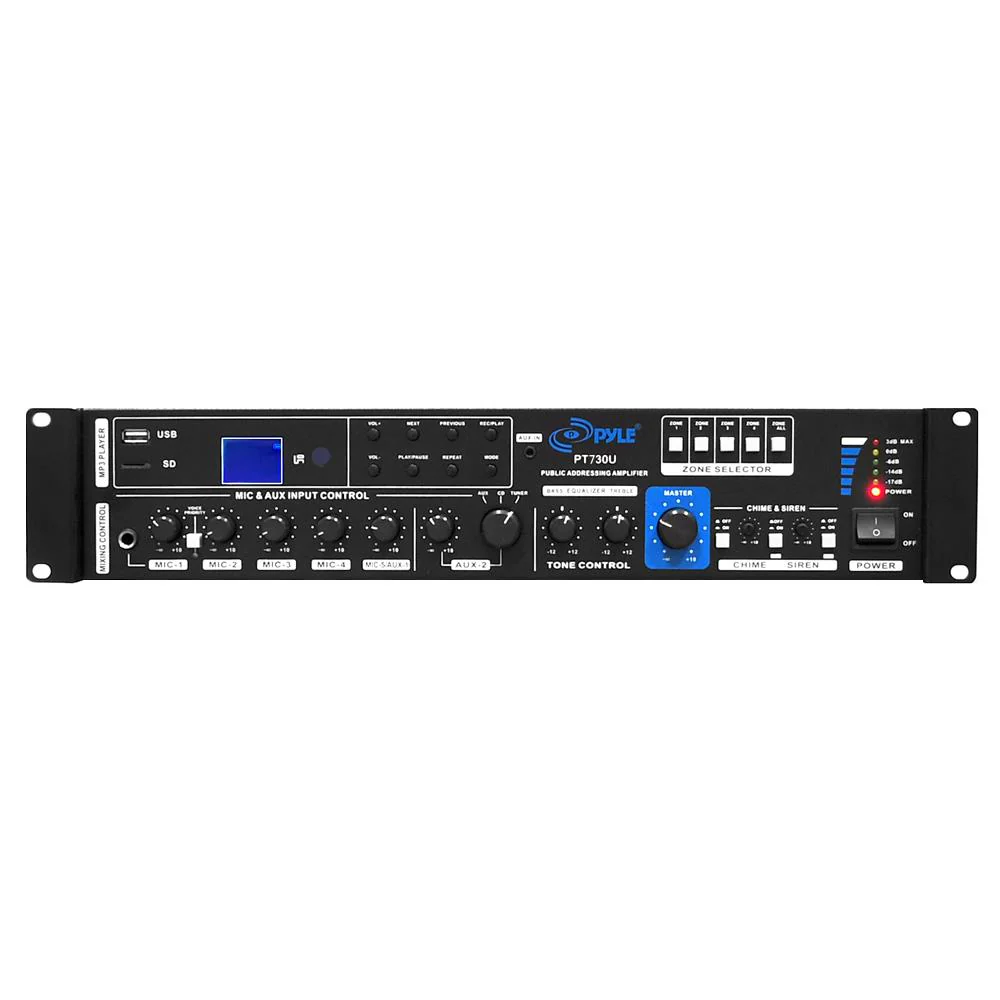

• Front Panel Button Control Center
• Rack Mountable System
• Used for Profession Audio Applications, Office/Business Microphone Paging

What’s in the Box:

• PA Amplifier
• Remote Control
• Power Cable

Technical Specs:

• Power Output: 375 Watt MAX
• Impedance: 4 Ohm/21.9V, 8 Ohm/30.9V, 70V/40.8, 100V/83.3
• Frequency Response: 80Hz-20kHz
• S.N. Ratio: Mic 60dB, Aux 80dB
• T.H.D. @ 1kHz: <1.0%
• Tone Controls Master: Bass/Treble +/-12dB @100kHz
• Sensitivity: Mic 2mV/600 Ohm, Line-In: 250mV/10k Ohm
• Digital Audio File Support: MP3, WAV, WMA
• Phantom Power Control: On/Off
• Fuse Type: T8A
• Power Supply: 110V/220V, Switchable
• Dimensions (L x W x H): 19.0’’ x 13.0’’ x 3.5’’ -inches

What's In The Box

PA Amplifier

Remote Control

Power Cable

MANUALS & DOWNLOADS

PT730U - Manuals
